MiniFlex IP Multiplexer

Flexible solutions for mission-critical applications.

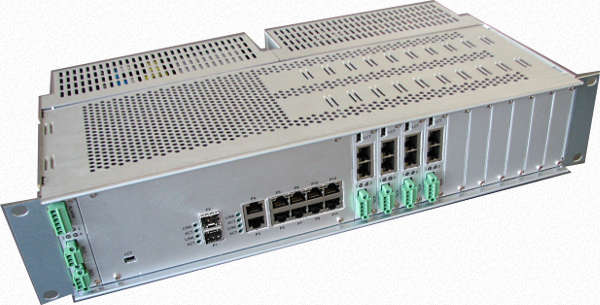

MiniFlex Rack with build-in Switch for 10 Linecards

MF-MR2N-SW-12Eth,V1

MiniFlex Rack

The MiniFlex IP Multiplexer allows Utilities (Railways, Gas/Oil distribution, Roads, Offshore) smooth migration from existing TDM and Serial based networks (E1, RS-232/422/485) to packet based (Ethernet and IP).

The MiniFlex Core Switch based on high-performance System on Chip (SoC) that has 24.8 Gbps non-blocking switching matrix. The SoC supports Classes of Service (CoS) with 8 queues by hardware. The SoC has anti DDoS protection as well and supports Access Control Lists.

10 expansion slots of the multiplexer designed for tributary cards with Serial interfaces, FXO/FXS/VF ports or for Interface Extenders over Fiber or Copper.

MF-FOM-SRL or MF-FOM-SR2L line cards allow connection of remote locations over single- or multi-mode fiber, depending on a SFP module type. MF-PAM line cards transmit data traffic to the remote location over one or two copper pairs using industry-proven SHDSL.bis Extended technology (TC-PAM4/8/16/32/64/128)

The unique combination of legacy interfaces, high-performance switching core and interface extenders in one platform makes MiniFlex IP Multiplexer an unbeatable platform for mission-critical applications.

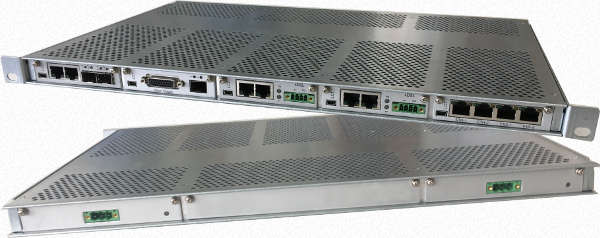

MiniFlex Rack for 10 Linecards

MF-MR2N,V1

MiniFlex Rack

The MiniFlex Rack available without core switching/management card as well. All Tributary cards can be connected one with another using external third-party Ethernet switch or directly by Ethernet patch-cords.

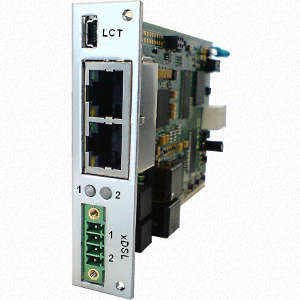

MiniFlex SHDSL.bis Line Card

MiniFlex SHDSL Card

MF-PAM-SR2L-2Eth,V1

The Line Card carries 2 SHDSL.bis Extended interfaces based on the latest SHDSL.bis standards (ITU-T G.991.2 & ETS TS 101524), while also been fully interoperable with all our existing SHDSL equipment (Orion1, Orion2, Orion3). The Line Card supports beside of the standardized TC-PAM16/32 also the new extended TC-PAM4/8/64/128 line coding. SHDSL.bis allows symmetrical data and voice transmission at speeds up to 15Mbps over a single pair of copper. In addition, the FlexDSL MiniFlex SHDSL.bis modem range also supports DSL channel bonding for up to 2 copper pairs in order to achieve speeds up to 30.4Mbps. An integrated 2 port Ethernet layer 2 managed switch with VLAN, QoS and RSTP support (10/100BaseT) ensures connectivity to IP services.

MiniFlex Single Fiber Optic Line Card

MiniFlex Single Fiber

MF-FOM-SRL,V1

MiniFlex Single-SFP Line Card allows Ethernet data transmission over single- or multi-mode fiber, depending on a SFP module installed into it.

MiniFlex FOM uses Ethernet 100Base-FX standard for data encapsulation therefore it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX interface from other vendors.

Unlike simple unmanaged media-converters the MiniFlex FOM has build-in Layer 2 Ethernet managed switch that supports RSTP protocol and has QoS engine for traffic priority.

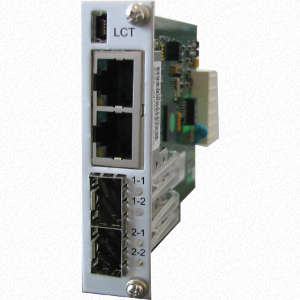

MiniFlex Dual Fiber Optic Line Card

MiniFlex Dual Fiber

MF-FOM-SR2L-2Eth,V1

MiniFlex Dual-SFP Line Card allows Ethernet data transmission over single- or multi-mode fiber, depending on a SFP module installed into it.

MiniFlex Dual-FOM uses Ethernet 100Base-FX standard for data encapsulation therefore it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX interface from other vendors.

Unlike simple unmanaged media-converters the MiniFlex FOM has build-in Layer 2 Ethernet managed switch that supports RSTP protocol and has QoS engine for traffic priority.

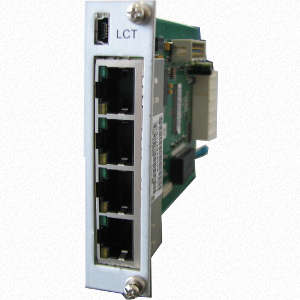

MiniFlex Managed Switch Line Card

MiniFlex Managed Switch

MF-SW-SRL-8Eth,V1

MiniFlex Managed Switch Line Card expands the number of Ethernet ports in the rack. It has 4x 10/100Base-TX interfaces and acts as Layer 2 Managed Switch.

If all slots are equipped with MF-SW-SRL-8Eth,V1 lone card the total number of 10/100Base-TX Ethernet ports pro rack will be increased to 48.

MiniFlex Managed Switch supports RSTP protocol and can be used in a ring carrying Ethernet or Serial data.

It also supports Classes of Service and can limit the ingress bandwidth of a port.

MiniFlex Serial Interfaces Line Card

MiniFlex Serial Card

MF-SER-SRL-4V24,V1

MiniFlex Serial Line Card designed for pseudo-wire transmission of Serial data (RS-232/V.24/V.28) over packet networks.

4 Serial interfaces located on the front plate support RS-232 and V.24/V28 standards and can operate in Point-to-Point, Point-to-Multipoint or in Broadcast topologies. Thanks to the support of RSTP protocol the Serial data can be distributed even over Ring networks.

MiniFlex Dual Fiber Optic Serial Interface Line Card

MiniFlex Fiber with Serial

MF-FOM-SR2L-SER/Eth,V1

MiniFlex Dual-SFP Line Card allows Ethernet and Serial (RS-232/422/485) data transmission over single- or multi-mode fiber, depending on a SFP module installed into it.

MiniFlex Dual-FOM uses Ethernet 100Base-FX standard for data encapsulation therefore it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX interface from other vendors.

Unlike simple unmanaged media-converters the MiniFlex FOM has build-in Layer 2 Ethernet managed switch that supports RSTP protocol and has QoS engine for traffic priority.

Serial data (RS-232/422/485) can be transmitted in Point-to-Point, Point-to-Multipoint or in Broadcast topologies. Thanks to the support of RSTP protocol the Serial data can be distributed even over Ring networks.

MiniFlex 4x E1 G.703/G.704 Interface Line Card

MiniFlex E1 Interface

MF-TDM-SRL-4E1B,V1

MiniFlex E1 Interface Line Card allows, depending on an installed Firmware, either Ethernet data transmission over E1 links or E1 channels transmission over Packet Networks.

E1 interface card has four E1 channels and single Ethernet interface connected to the backplane of the MiniFlex rack. The E1 channels can be bonded, so the Ethernet data can reach 8 Mbps in converter mode.

In TDMoIP mode the E1 channels may be created either between two units, or arrange "star" topology where central card serves four remote locations.

In Converter mode the MiniFlex E1 interface card is compatible with Orion3 devices, while in TDMoIP mode it is interoperable with third-party products that support SAToP (RFC4553), CESoPSN (RFC5086) or CESoETH (MEF-8).

MiniFlex VoIP Dual FXS Line Card

MiniFlex VoIP Gateway

MF-VOIP-SRL-2Eth/2FXS,V1

MiniFlex Dual Channel Voice over IP gateway with FXS interface designed for analogue voice channel transmission over packet networks. It supports two analogue Phones and has two 10/100Base-TX Ethernet ports.

An IP channel can be created either between two units with FXS interface (Hotline), or between MiniFlex unit with FXO and with MiniFlex unit with FXS interface (Voice line Extension), or between Software PBX and MiniFlex unit with FXS interface (Softswitch and Gateway). Every voice port of MiniFlex VoIP gateway can have a dedicated directory number, therefore, a group of interconnected MiniFlex VoIP gateways represent a distributed PBX.

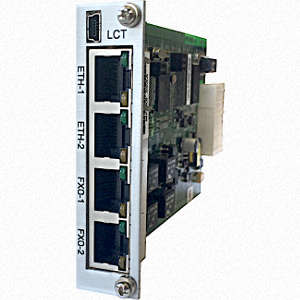

MiniFlex VoIP Dual FXO Line Card

MiniFlex VoIP Gateway

MF-VOIP-SRL-2Eth/2FXO,V1

MiniFlex Dual Channel Voice over IP gateway with FXO interface designed for analogue voice channel transmission over packet networks. It supports two analogue PBX extensions and has two 10/100Base-TX Ethernet ports.

An IP channel can be created between MiniFlex unit with FXO and with MiniFlex unit with FXS interface (Voice line Extension), or between single MiniFlex with FXO interface and multiple MiniFlex units with FXS interface (Shared CO Line Extension).

MiniFlex VoIP Dual VF Line Card

MiniFlex VoIP Gateway

MF-VOIP-SRL-2Eth/2VF,V1

MiniFlex Dual Channel Voice over IP gateway with VF (Voice Frequency) interface designed for transmission pseudo-wire analogue voice channels over packet networks. It supports two analogue Voice Frequency channels with E&M signaling type V and has two 10/100Base-TX Ethernet ports.

MiniFlex VoIP implements precise clock recovery algorithm. It decrease clock mismatch between connected peers and improves voice channel parameters required for smooth operation of analogue modems.

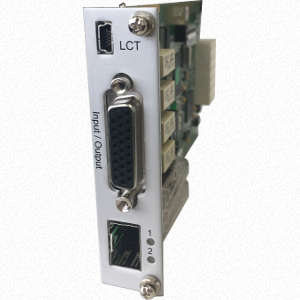

MiniFlex Input / Output Line Card

MiniFlex Input / Output Line Card

MF-IO-SRL-4I4O/Eth,V1

MiniFlex IO Line Card contains 4 Inputs and 4 Outputs.

Input is a pair of contacts connected to current detector; if the current is present in the electric circuit the Input switches its state to "Closed". Input changes its state into "Open" if no current detected in the electric circuit.

Output is a pair of contacts (normally-open and normally-closed) and common wire connected to relay. Relay may stay either on "Active" or in "Inactive" state. Active state means that the current passes through relay coil and common contact is connected to the normally-open contact. Inactive state means that no current passes through relay coil and common contact is connected to normally-closed one.

Two MiniFlex Line Cards or DINrail modules create communication channel that transfers Input status to corresponding Output relay over DSL, Ethernet or E1 link.
